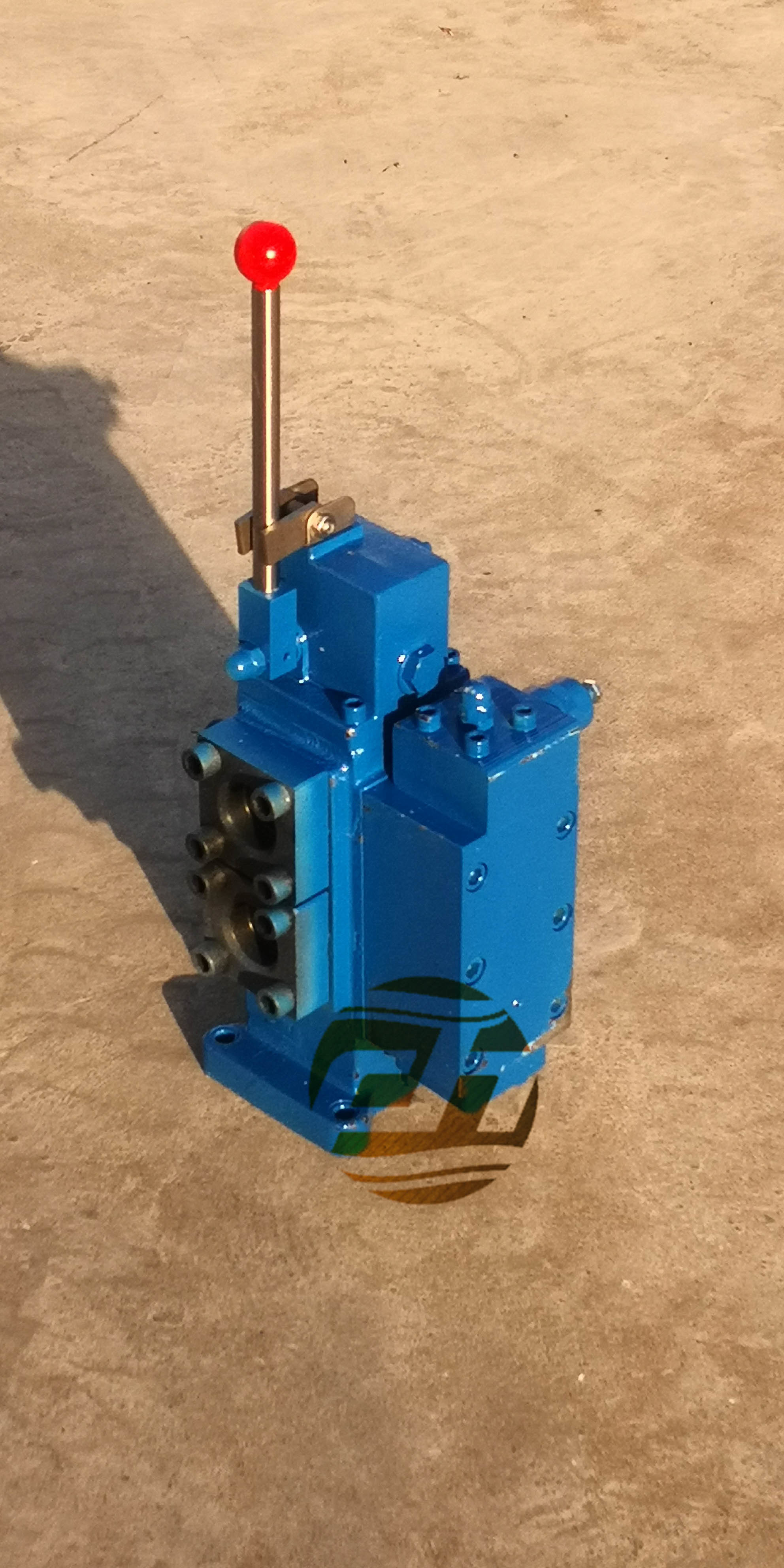

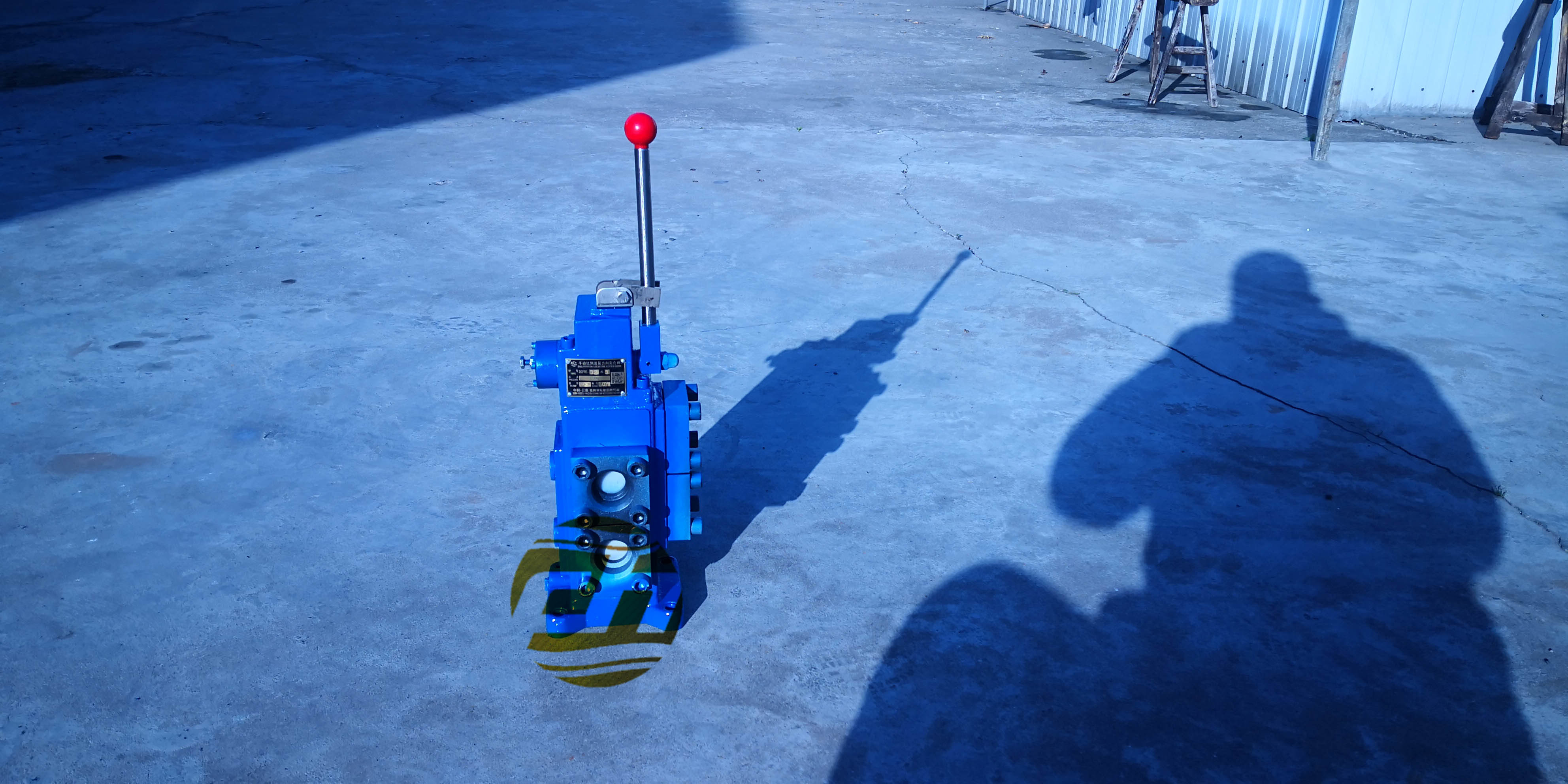

Manual Direction Proportional Flow Control Valve
35SFRE manual proportional compound valve - Marine manual reverse
proportional valve - Manual proportional windlass operating valve
profile:
35SFRE ship with manual reversing proportional control valve is
three position five way valve has excellent response
characteristics and pressure compensation function; pressure
compensation valve suppress load impact, flow system will not
because of pressure fluctuations and volatility, and provide stable
power;
The bypass compensator is used to avoid the reverse impact; in
addition, the 35SFRE marine manual reversing proportional speed
regulating valve has a compensator with high response
characteristics, and is suitable for occasions with load impact.
35SFRE marine manual reverse proportional speed regulating valve,
shipboard manual proportioning compound valve, performance
characteristics:
n, stepless speed regulation, unloading and overload protection.
The utility model has the advantages of simple structure and
reliable operation
2, this section of 35SFRE manual proportional reversing valve,
manual regulation of smooth, sensitive, reversing and stepless
speed regulation synchronization
3, M type manual proportioning valve valve pump output power and
motor (cylinder) load power matching, energy-saving effect is
prominent, suitable for single valve or multi valve series
4, O type manual proportional flow composite valve in place without
unloading, suitable for multi valve parallel connection
Marine manual proportional reversing speed control valve type
35SFRE model description:
35SFRE manual proportion compound valve, manual proportional
reversing speed regulating valve, function indication:
| model | Nominal dia.(mm) | Nominal flow(L/min) |
Nominal pressure(MPa) |
Mid-position pulley enginery |
35SFRE | 15 | 60 |
21Mpa
|
MO,MN,MJ,MY
OO,ON,OJ,OY |
| 20 | 100 |
| 25 | 200 |
| 32 | 280 |
| 40 | 380 |
| 50 | 600 |
| 60 | 800 |
